Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge


  • Please log in to reply
1897 replies to this topic

Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1561 lespat

  • Member
  • 13 posts

0
Neutral

Posted 13 September 2019 - 17:01

Satellite 9.0e DVB-S2 12092H 27500 3/4 8PSK showing a number (approx 12) of Freeview channels similar to those "available" on 27.5w managed by Arqiva but without Video PID and Audio PID.  Anyone else seen these or know anything?  Is it something to do with potential demise of Intesat 907?  No mention of these recent finds on Flysat, Lyngsat or King of Sat.



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1562 Huevos

  • PLi® Contributor
  • 4,229 posts

+158
Excellent

Posted 13 September 2019 - 20:29

Satellite 9.0e DVB-S2 12092H 27500 3/4 8PSK showing a number (approx 12) of Freeview channels similar to those "available" on 27.5w managed by Arqiva but without Video PID and Audio PID.  Anyone else seen these or know anything?  Is it something to do with potential demise of Intesat 907?  No mention of these recent finds on Flysat, Lyngsat or King of Sat.

How is a few french channels showing a static image of a bake potato related to 27.5W?



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1563 lespat

  • Member
  • 13 posts

0
Neutral

Posted 14 September 2019 - 10:11

Not sure what you are saying, but I rescanned 9.0e yesterday and new channels appeared named CH1, CH2, Ch3, CH4, CH5, CH6, 995, 996, 997, 998, 999.  The EPG shows that CH1 -CH6 are the first channels of the Freeview line-up. i.e. BBC One, BBC Two etc.  Only thing missing seems to be the video & Audio PIDs.  Curious!



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1564 EnoSat

  • Senior Member
  • 182 posts

+4
Neutral

Posted 25 September 2019 - 20:46

real work only 2 channels , in PMT defined as Data








Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1565 Robinson

  • Senior Member
  • 2,613 posts

+30
Good

Posted 28 September 2019 - 21:13

EnoSat, do the 2 channels work on an Enigma2 box or no chance without special actions?


ET9000, OpenPLi 4.0, 13E, 19E

HD51, OpenPLi 6.2, 75E - 30W


Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1566 antrabe

  • Senior Member
  • 197 posts

0
Neutral

Posted 29 September 2019 - 17:50

i have read in severals forums that works on oe2.5 images for dreamboxes dm900/920 please could anyone explain how



thanks



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1567 dxdy

  • New Member
  • 3 posts

0
Neutral

Posted 29 September 2019 - 18:58

i have read in severals forums that works on oe2.5 images for dreamboxes dm900/920 please could anyone explain how



thanks



years ago on other e2 i fix this but with DB920 UHD is mistery for me.... did anyone have good channel lists, or lame.db.... i tried manually to change lame.db with bbc data but not successfully



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1568 antrabe

  • Senior Member
  • 197 posts

0
Neutral

Posted 29 September 2019 - 23:49

i only need the last lamedb and scripts for run bbc_long_pmt_v6.py because when i stop telnet all is stopped



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1569 dxdy

  • New Member
  • 3 posts

0
Neutral

Posted 3 October 2019 - 09:08

i only need the last lamedb and scripts for run bbc_long_pmt_v6.py because when i stop telnet all is stopped



here, not sure is latest, not tested yet

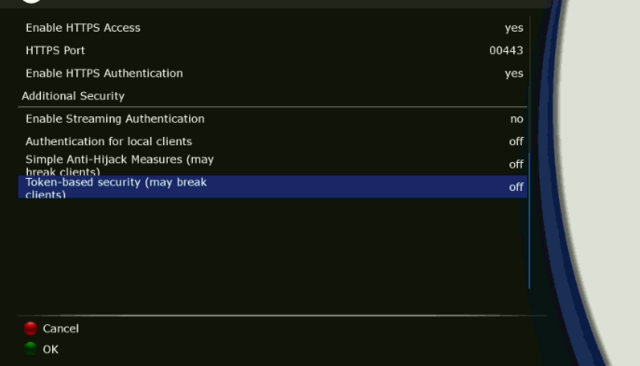

for OE2.5 disable anti-hijacking and token-based security in web interface settings



all files with permission 755

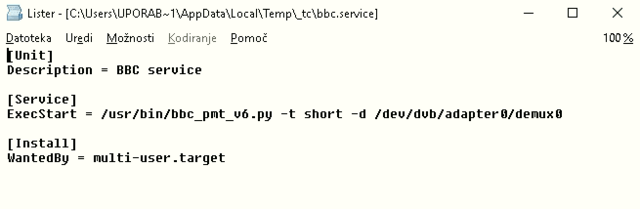

if needed bbc.service:



create the bbc.service file in /etc/systemd/system

insert this:

[Unit]
Description = BBC service

[Service]
ExecStart = /usr/bin/bbc_pmt_v6.py -t short -d /dev/dvb/adapter0/demux0

[Install]
WantedBy = multi-user.target

Activate service with via console
systemctl enable bbc.service

Attached Files


Edited by dxdy, 3 October 2019 - 09:11.


Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1570 dxdy

  • New Member
  • 3 posts

0
Neutral

Posted 4 October 2019 - 19:03

Tested and success! Here is whole instructions to work all!



finally success with Dreambox 920UHD

image DreamElite 6 latest OE2.5
oscam 11546 emu798

1. in Menu - Setup Network WebInterface
"disable anti-hijacking and token-based security in web interface settings" (big thank you again @matt33 and @Rickk)


2. (all files with permission 755) create the bbc.service file in /etc/systemd/system

insert that

[Unit]
Description = BBC service

[Service]
ExecStart = /usr/bin/bbc_pmt_v6.py -t short -d /dev/dvb/adapter0/demux0

[Install]
WantedBy = multi-user.target


3.copy all 3 files from bbc_pmt_v6.rar to usr/bin (all files with permission 755)

4. with command (Telnet, you can use DCC) activate service with:
systemctl enable bbc.service

5. edit oscam.dvbapi file (in etc/tuxbox/config), file attached below

6. with command (Telnet) init 4 stop Enigma, replace with lamedb (from attachment), init 3 and reboot...

also be sure in oscam.conf
pmt_mode                      = 0

Attached Files



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1571 stone96

  • Member
  • 2 posts

0
Neutral

Posted 7 October 2019 - 17:35

tanks is all ok



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1572 teleradio

  • Senior Member
  • 123 posts

0
Neutral

Posted 11 October 2019 - 04:09



Tested and success! Here is whole instructions to work all!



finally success with Dreambox 920UHD

image DreamElite 6 latest OE2.5
oscam 11546 emu798

1. in Menu - Setup Network WebInterface
"disable anti-hijacking and token-based security in web interface settings" (big thank you again @matt33 and @Rickk)


2. (all files with permission 755) create the bbc.service file in /etc/systemd/system

insert that

[Unit]
Description = BBC service

[Service]
ExecStart = /usr/bin/bbc_pmt_v6.py -t short -d /dev/dvb/adapter0/demux0

[Install]
WantedBy = multi-user.target


3.copy all 3 files from bbc_pmt_v6.rar to usr/bin (all files with permission 755)

4. with command (Telnet, you can use DCC) activate service with:
systemctl enable bbc.service

5. edit oscam.dvbapi file (in etc/tuxbox/config), file attached below

6. with command (Telnet) init 4 stop Enigma, replace with lamedb (from attachment), init 3 and reboot...

also be sure in oscam.conf
pmt_mode                      = 0





Hello dxdy!



Thanks to  your instructuion and the included files I was also successful on my DM920 with Newnigma2 and all BBC channels on 27. 5w are working.

However, I have the problem that I always have to switch to „Red Button 1“ first, so that the other channels also get working and I can switch back and forth
between the BBC channels without any problems. But if I switch to another channel than BBC (for example ZDF) and then switch back to one of the
BBC channels, I have to switch back to „ Red Button 1" first, so that all other BBC channels work again. What am I doing wrong?



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1573 jpuigs

  • Senior Member
  • 1,143 posts

+32
Good

Posted 11 October 2019 - 12:31

I don't know if it has already been written, iI think it hasn't.

This satellite (Intelsat 907) is old, it was launched in February 2003, so its 13 years design life finished time ago.

Intelsat has never said nothing about a replacement... but on Wednesday, when looking at Eutelsat 5W B and MEV-1 launch on ILS dedicated channel, I saw this....



Attached File  MEV-1.jpg   51.41KB   11 downloads



So MEV-1 will dock into Intelsat 901 (which is currently in inclined orbit at 29.5 W) and be moved to 27.5 W to give service for 5 years......


Edited by jpuigs, 11 October 2019 - 12:32.

Enigma is getting old....



Spoiler

Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1574 twol

  • Senior Member
  • 442 posts

+15
Neutral

Posted 11 October 2019 - 13:44

Interesting - hope they don't change the encoding system


Gigablue Quad 4K & UE 4K
.........FBC Tuners:
------------------> DUR-Line DCR 5-1-8-L4 Multiswitch to 1.5M dish(28.2E)
------------------> Spaun SUS 5581/33 NFA Multiswitch to 80 cm dish(19.2E)
.........DVB-S2X into 90cm dish (27.5W)

Octagon sf8008, AX HD61, Edision Osmio 4K+, Zgemma H9Combo using Legacy ports on multiswitches
Zgemma H9twin & Zgemma H9 C/S mode into Giga4K



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1575 jpuigs

  • Senior Member
  • 1,143 posts

+32
Good

Posted 11 October 2019 - 14:24

Now the question is...... suposing that transmission mode and encryption remain unchanged.........will its footprint change ?

On Intelsat website, 901 current KU band footprints just give two caribean ones..... which are almost the same one.



http://www.intelsat....s/901-330S1.jpg

http://www.intelsat....s/901-330S2.jpg



will have to go to Cuba to watch BBC.....  :D


Edited by jpuigs, 11 October 2019 - 14:25.

Enigma is getting old....



Spoiler

Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1576 sleepy

  • Senior Member
  • 45 posts

0
Neutral

Posted 11 October 2019 - 15:07

They have a different picture.

Though they are not Intelsat.



http://www.sky-broke...-Footprints.pdf



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1577 jpuigs

  • Senior Member
  • 1,143 posts

+32
Good

Posted 12 October 2019 - 12:23

Ok. these are pictures of when it was at 18 West.

European Footprint seems very similar to 907 current European one, although centered on a different point.


Enigma is getting old....



Spoiler

Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1578 Robinson

  • Senior Member
  • 2,613 posts

+30
Good

Posted 12 October 2019 - 22:09

What is the center point? Where do you see the new footprint?

Whar are the frequencies used by this new satellite?


ET9000, OpenPLi 4.0, 13E, 19E

HD51, OpenPLi 6.2, 75E - 30W


Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1579 sleepy

  • Senior Member
  • 45 posts

0
Neutral

Posted 12 October 2019 - 22:32

If we believe the maps I linked, of course if those apply to 18w orbital position, they will change a bit, but probably they can orient the satellite in a proper way and I think the spot on the ground will not be very different (18 W and 27.5 W are not that far, though undeniably different).



Spot 1 observed frequencies according to King of Sat:



https://en.kingofsat...php?sat=35&b=61



All the rest about our beloved signal of course is even more misty, at least for me.



Re: Enigma2 and BBC/ITV at 27.5W Intelsat - a big challenge #1580 jpuigs

  • Senior Member
  • 1,143 posts

+32
Good

Posted 13 October 2019 - 13:00

@ Robinson,



Current 901 (29.5 W) KU footprint

http://www.intelsat....s/901-330S1.jpg



Old 901 (18 W) KU footprint:

https://imagizer.ima...6233/TIDnUp.jpg



If you compare, it's a "mirrored footprint".





Current 907 (27.5 W) KU footprint:

https://www.intelsat...s/907-332S2.jpg



As you can see, current 907 is centered on UK, and old 901 was centered on East Spain-South France, but shape was the same.


Edited by jpuigs, 13 October 2019 - 13:02.

Enigma is getting old....



Spoiler
